Product type : TOROIDAL CORES
Main application : Filter for FRI suppression

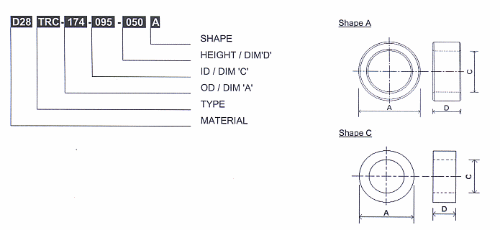

D I M E N S I O N S  ( U N I T - mm ) # Impedance
PRODUCT CODE         A         C         D *       SHAPE   25 MHz
(min)		 100 MHz
(min)
TRC - 130 - 070 - 127 A       13.00 ± 0.40     7.00       12.70 ± 0.40     A 40 80
TRC - 130 - 071 - 063 A   13.00 ± 0.40   7.15 ± 0.20   6.35 ± 0.30   A 23 43
TRC - 142 - 063 - 050 A   14.27 ± 0.40   6.35 ± 0.25   5.08 ± 0.20   A 24 50
TRC - 142 - 063 - 101 A   14.27 ± 0.40   6.35 ± 0.25   10.15 ± 0.40   A 49 89
TRC - 142 - 063 - 134 A   14.27 ± 0.40   6.35 ± 0.25   13.41 ± 0.40   A 63 112
TRC - 142 - 081 - 100 A   14.27 ± 0.40   8.10 ± 0.30   10.00 ± 0.30   A 63 112
TRC - 145 - 102 - 080 A   14.50 ± 0.40   10.20 ± 0.30   8.00 ± 0.30   A 36 70
TRC - 152 - 105 - 125 A   15.20 ± 0.50   10.50 ± 0.30   12.50 ± 0.40   A 34 64
TRC - 158 - 078 - 130 A   15.88 ± 0.50   7.87 ± 0.25   13.00 ± 0.40   A 57 103
TRC - 158 - 078 - 142 A   15.88 ± 0.50   7.87 ± 0.25   14.27 ± 0.40   A 57 105
TRC - 158 - 088 - 047 A   15.88 ± 0.50   8.80 ± 0.30   4.70 ± 0.20   A 13 30
TRC - 160 - 090 - 040 A   16.00 ± 0.50   9.00 ± 0.30   4.00 ± 0.20   A 13 30
TRC - 160 - 090 - 075 A   16.00 ± 0.50   9.00 ± 0.30   7.50 ± 0.30   A 27 49
TRC - 160 - 090 - 090 A   16.00 ± 0.50   9.00 ± 0.30   9.00 ± 0.30   A 32 65
TRC - 174 - 095 - 050 A   17.42 ± 0.50   9.52 ± 0.30   5.00 ± 0.20   A 22 55
TRC - 174 - 095 - 063 A       17.42 ± 0.50     9.52 ± 0.30     6.35 ± 0.30     A 26 59



*Dimension can be readily modified to suit specific applications.

# Based upon single turn impedance measurement, using a HP-4286A/HP-4191A
